OPTIMAL CONNECTIVITY offers UHF high power Combiner / Splitter which are able to symmetrically combine or split RF energy of an input signal into a number of equal output signals or combine different input signals into its output ports. All our RF Filters/ Combiners have a 50Ω impedance. The robust design allows them to be also used in Phased-Array-Radar systems.

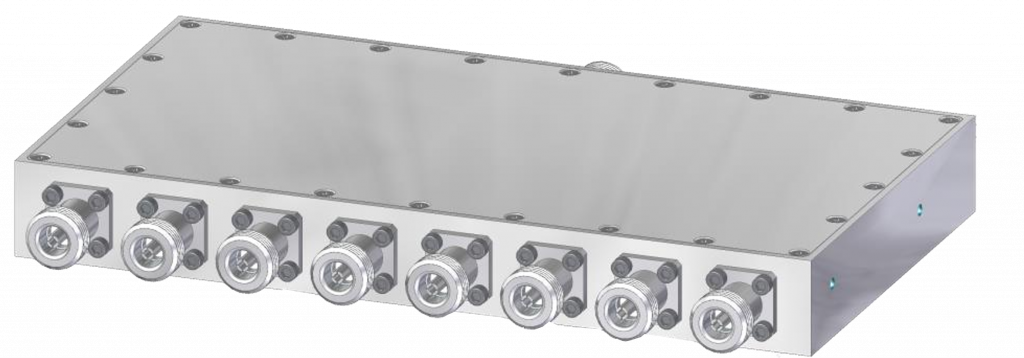

Passive 8:1 Combiner or 1:8 Splitter for High Power RF-Signals
50 Ohm, SMA (f) Connectors
Mounting Threads for Universal Rack Mounting Set (Delock 66236)
Number of Ports 8 Input/Output Ports + 1
Frequency Range: 400…500 MHz
Impedance, Connectors: 50 Ohm, N (f)
Insertion Loss: max. 1.5 dB above 9 dB split loss
Amplitude Balance: ±0.3 dB
Phase Balance: ±3°
Return Loss: >15 dB (Common Port), >18 dB (Input/Output Ports)
Isolation: >20 dB
Input Power: 200 W (Common Port)
Duty Cycle: >40%
Size: WxHxD 220 mm 26.2 mm x 161.4 mm
Weight: 1.4 kg
Operating Temperature: -20…+85 °C

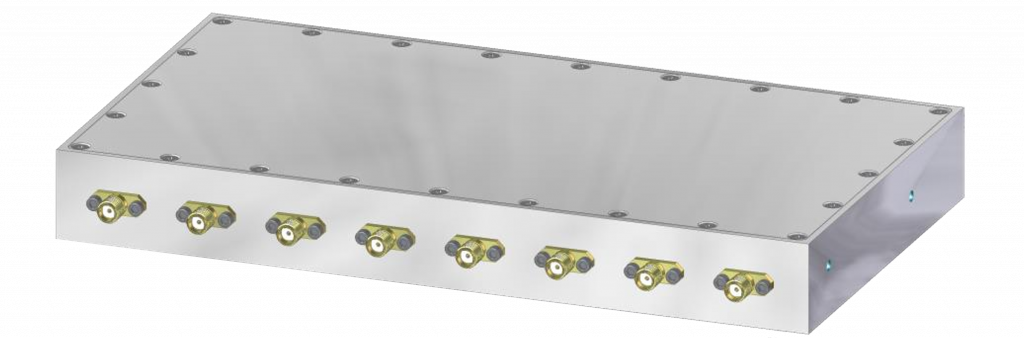

High Performance Passive Power Combiner/Splitter. Specifications are similar to the above model, however SMA (f) connectors and power rating: 120 W
Passive 8:1 Combiner or 1:8 Splitter for High Power RF-Signals 50 Ohm, SMA (f) Connectors Mounting Threads for Universal Rack Mounting Set (Delock 66236)
